Duffing Oscillator

System Description

Duffing oscillator with cubic nonlinearity:

\[ \begin{aligned} \dot{x} &= v \\ \dot{v} &= -\delta v - k_3 x^3 + A \cos(t) \end{aligned} \]

System Parameters

Parameter	Symbol	Value
Damping coefficient	\(\delta\)	0.08
Cubic stiffness	\(k_3\)	1.0
Forcing amplitude	\(A\)	0.2

Sampling

Dimension: \(D = 2\)
Sample size: \(N = 10000\)
Distribution: \(\rho\) = Uniform
Region of interest: \(\mathcal{Q}(x, v) : [-1, 1] \times [-0.5, 1]\)

Solver

Setting	Value
Method	Dopri5 (Diffrax)
Time span	\([0, 1000]\)
Steps	5000 (\(f_s\) = 5 Hz)
Relative tolerance	1e-08
Absolute tolerance	1e-06

Feature Extraction

Maximum and standard deviation of position:

States: \(x\) (state 0)
Formula: \([\max(x), \sigma(x)]\)
Transient cutoff: \(t^* = 900.0\)

Clustering

Method: k-NN (k=1)
Template ICs:
y1: \([-0.21, 0.02]\) — Period-1 limit cycle (small amplitude)
y2: \([1.05, 0.77]\) — Period-1 limit cycle (large amplitude)
y3: \([-0.67, 0.02]\) — Period-2 limit cycle
y4: \([-0.46, 0.30]\) — Period-2 limit cycle (symmetric)
y5: \([-0.43, 0.12]\) — Period-3 limit cycle

Reproduction Code

Setup

def setup_duffing_oscillator_system() -> SetupProperties:
    n = 10000

    device = "cuda" if torch.cuda.is_available() else "cpu"
    print(f"Setting up Duffing oscillator system on device: {device}")

    params: DuffingParams = {"delta": 0.08, "k3": 1, "A": 0.2}
    ode_system = DuffingJaxODE(params)

    sampler = UniformRandomSampler(min_limits=[-1, -0.5], max_limits=[1, 1], device=device)

    solver = JaxSolver(
        t_span=(0, 1000),
        t_steps=5000,
        t_eval=(900.0, 1000.0),
        device=device,
        rtol=1e-8,
        atol=1e-6,
        cache_dir=".pybasin_cache/duffing",
    )

    feature_extractor = TorchFeatureExtractor(
        time_steady=900.0,
        normalize=False,
        features=None,
        features_per_state={
            0: {"maximum": None, "standard_deviation": None},
        },
    )

    classifier_initial_conditions = [
        [-0.21, 0.02],
        [1.05, 0.77],
        [-0.67, 0.02],
        [-0.46, 0.30],
        [-0.43, 0.12],
    ]

    classifier_labels = [
        "$\\bar{y}_1$",
        "$\\bar{y}_2$",
        "$\\bar{y}_3$",
        "$\\bar{y}_4$",
        "$\\bar{y}_5$",
    ]

    knn = KNeighborsClassifier(n_neighbors=1)

    template_integrator = TemplateIntegrator(
        template_y0=classifier_initial_conditions,
        labels=classifier_labels,
        ode_params=params,
    )

    return {
        "n": n,
        "ode_system": ode_system,
        "sampler": sampler,
        "solver": solver,
        "feature_extractor": feature_extractor,
        "estimator": knn,
        "template_integrator": template_integrator,
    }

Main Estimation

def main() -> tuple[BasinStabilityEstimator, StudyResult]:
    setup = setup_duffing_oscillator_system()

    bse = BasinStabilityEstimator(
        n=setup["n"],
        ode_system=setup["ode_system"],
        sampler=setup["sampler"],
        solver=setup.get("solver"),
        feature_extractor=setup.get("feature_extractor"),
        predictor=setup.get("estimator"),
        template_integrator=setup.get("template_integrator"),
        output_dir="results",
        feature_selector=None,
    )

    result = bse.run()

    return bse, result

Case 1: Baseline Results (Supervised)

Comparison with MATLAB bSTAB

Overall Classification Quality:

Matthews Correlation Coefficient: 0.9977

Attractor	pybasin BS ± SE	bSTAB BS ± SE
\(\bar{y}_1\)	0.20230 ± 0.00402	0.20270 ± 0.00402
\(\bar{y}_2\)	0.49500 ± 0.00500	0.49500 ± 0.00500
\(\bar{y}_3\)	0.02880 ± 0.00167	0.02880 ± 0.00167
\(\bar{y}_4\)	0.02570 ± 0.00158	0.02570 ± 0.00158
\(\bar{y}_5\)	0.24820 ± 0.00432	0.24780 ± 0.00432

Visualizations

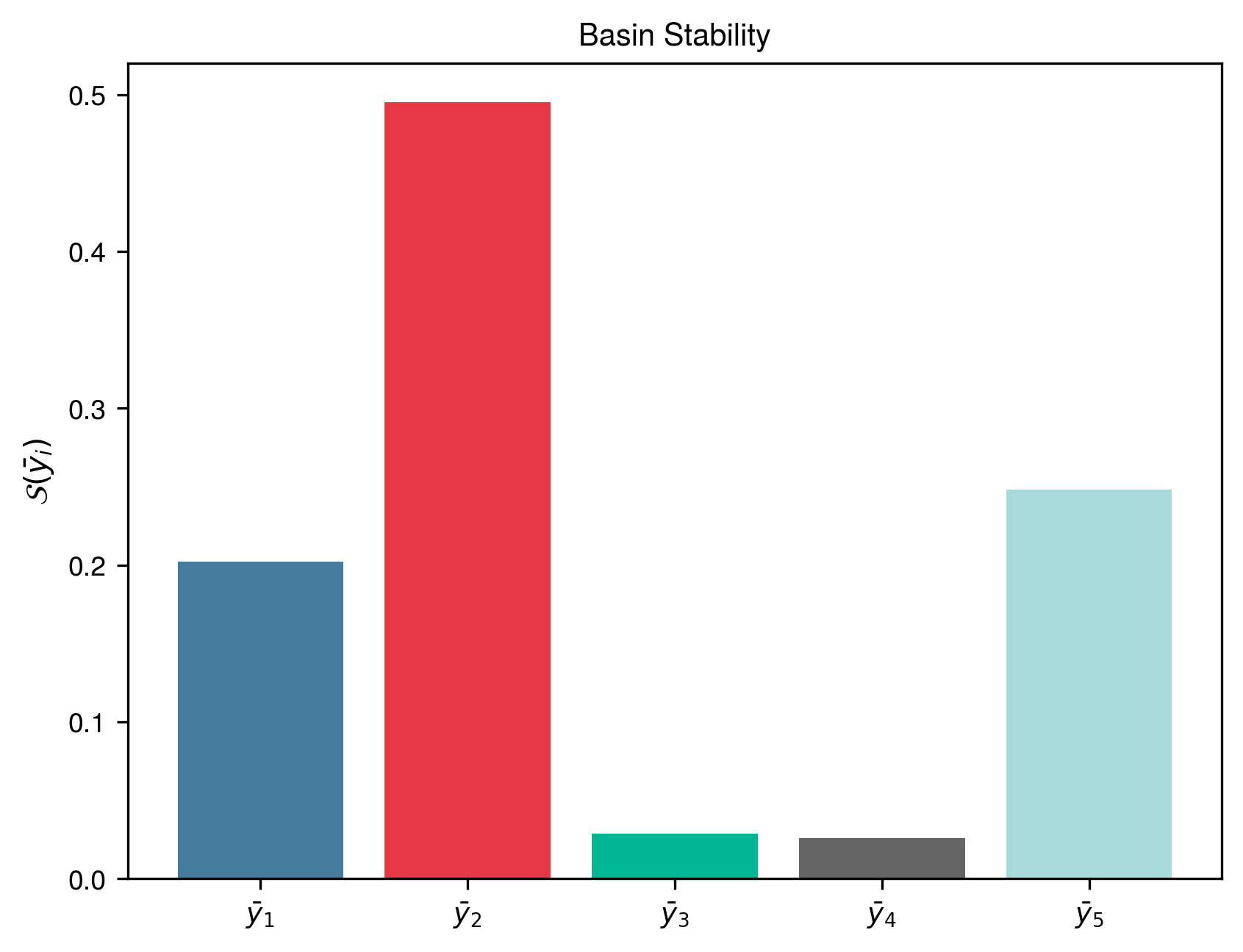

Basin Stability

State Space

Feature Space

Template Trajectories

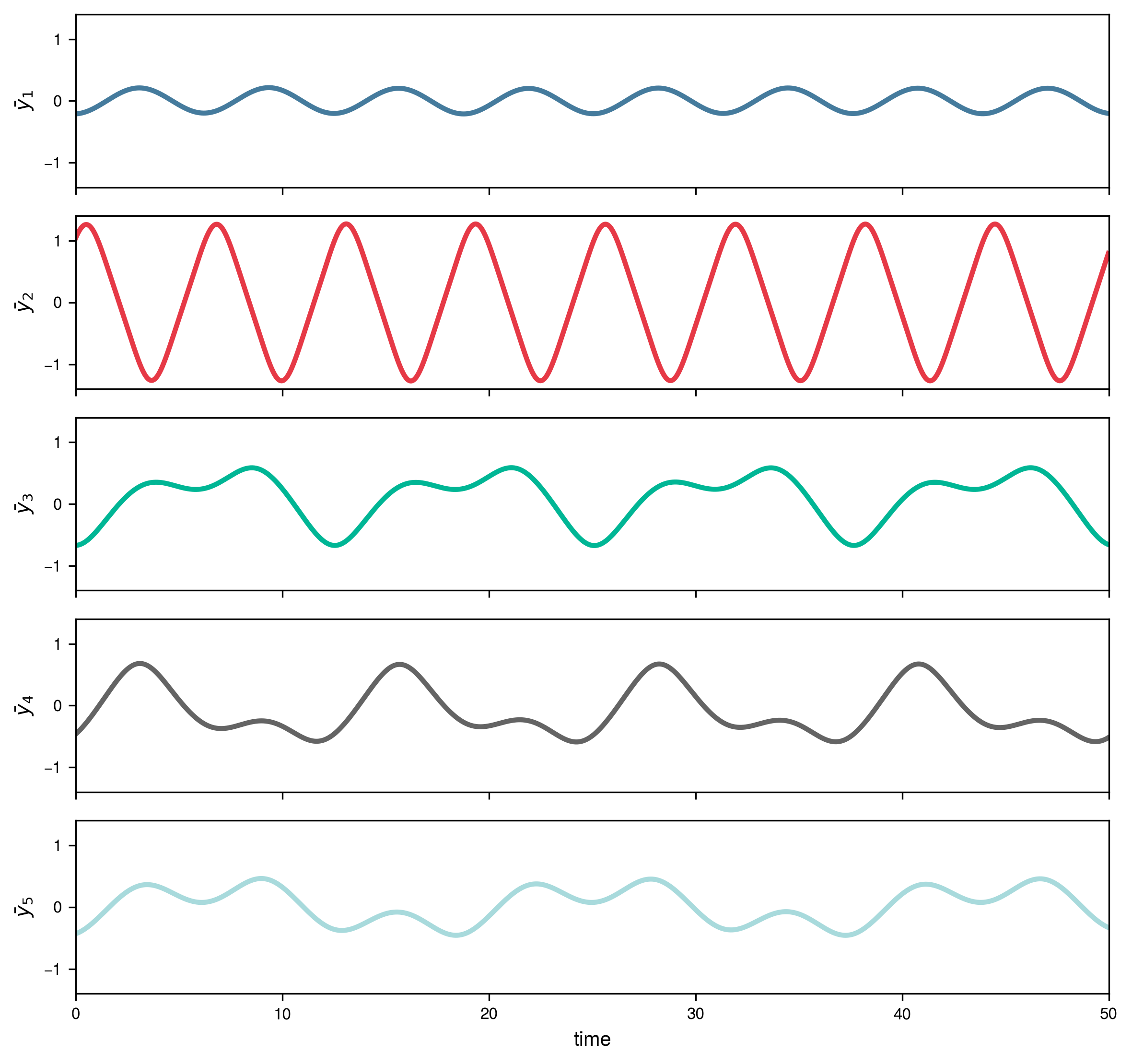

Trajectories

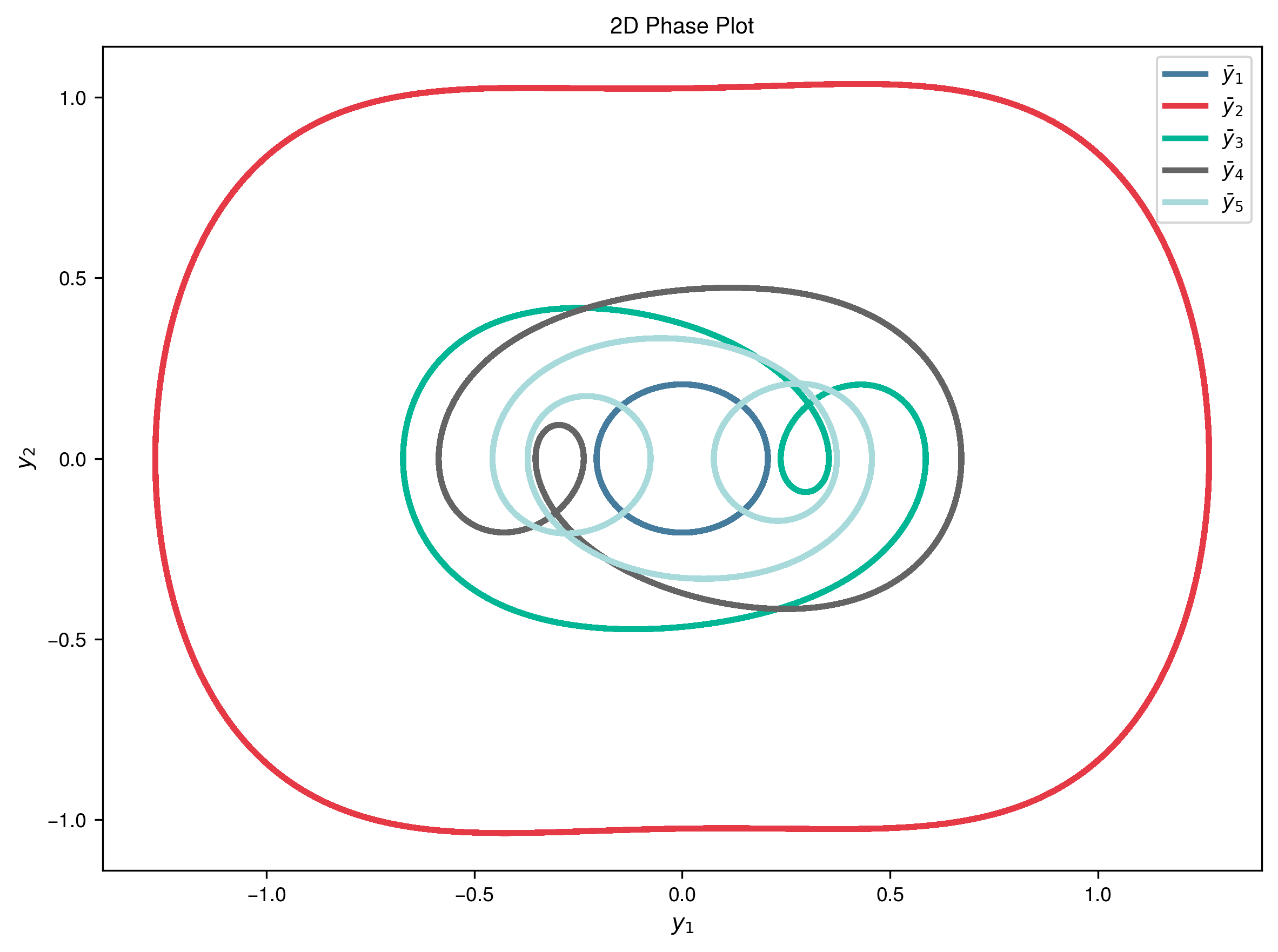

Template Phase Space

Phase Space

Case 2: Unsupervised Clustering with Template Relabeling

This case demonstrates unsupervised attractor discovery using DBSCAN clustering, followed by relabeling using KNN template matching to assign meaningful attractor names.

Comparison with MATLAB bSTAB

Cluster Quality Metrics:

Clusters found: 5 (expected: 5)
Overall agreement: 100.0%
Adjusted Rand Index: 1.0000
Matthews Correlation Coefficient: 0.9977

Attractor	DBSCAN	Purity	pybasin BS ± SE	bSTAB BS ± SE
\(\bar{y}_1\)	0	100.0%	0.20230 ± 0.00402	0.20270 ± 0.00402
\(\bar{y}_2\)	1	100.0%	0.49500 ± 0.00500	0.49500 ± 0.00500
\(\bar{y}_3\)	4	100.0%	0.02880 ± 0.00167	0.02880 ± 0.00167
\(\bar{y}_4\)	2	100.0%	0.02570 ± 0.00158	0.02570 ± 0.00158
\(\bar{y}_5\)	3	100.0%	0.24820 ± 0.00432	0.24780 ± 0.00432

Visualizations

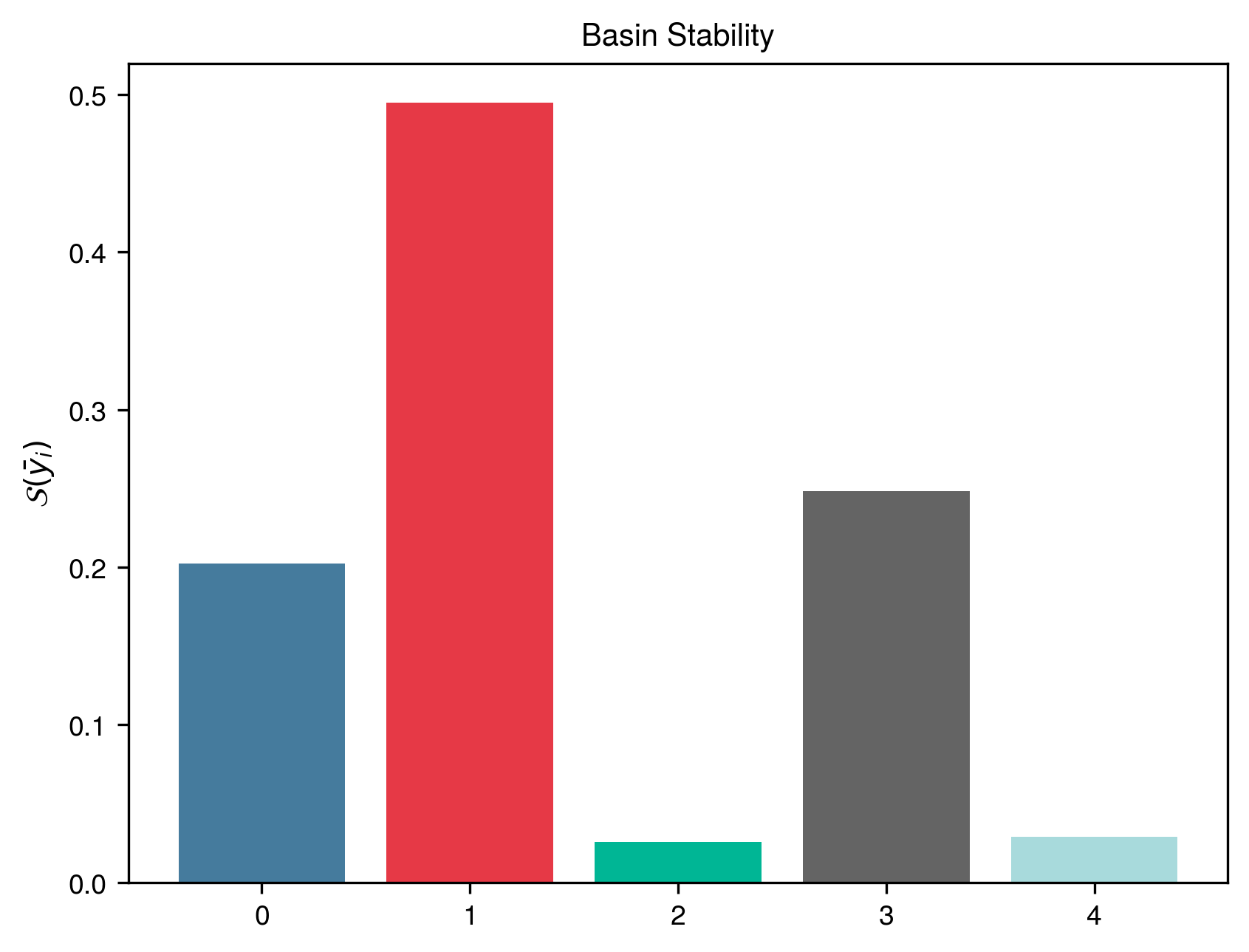

Basin Stability

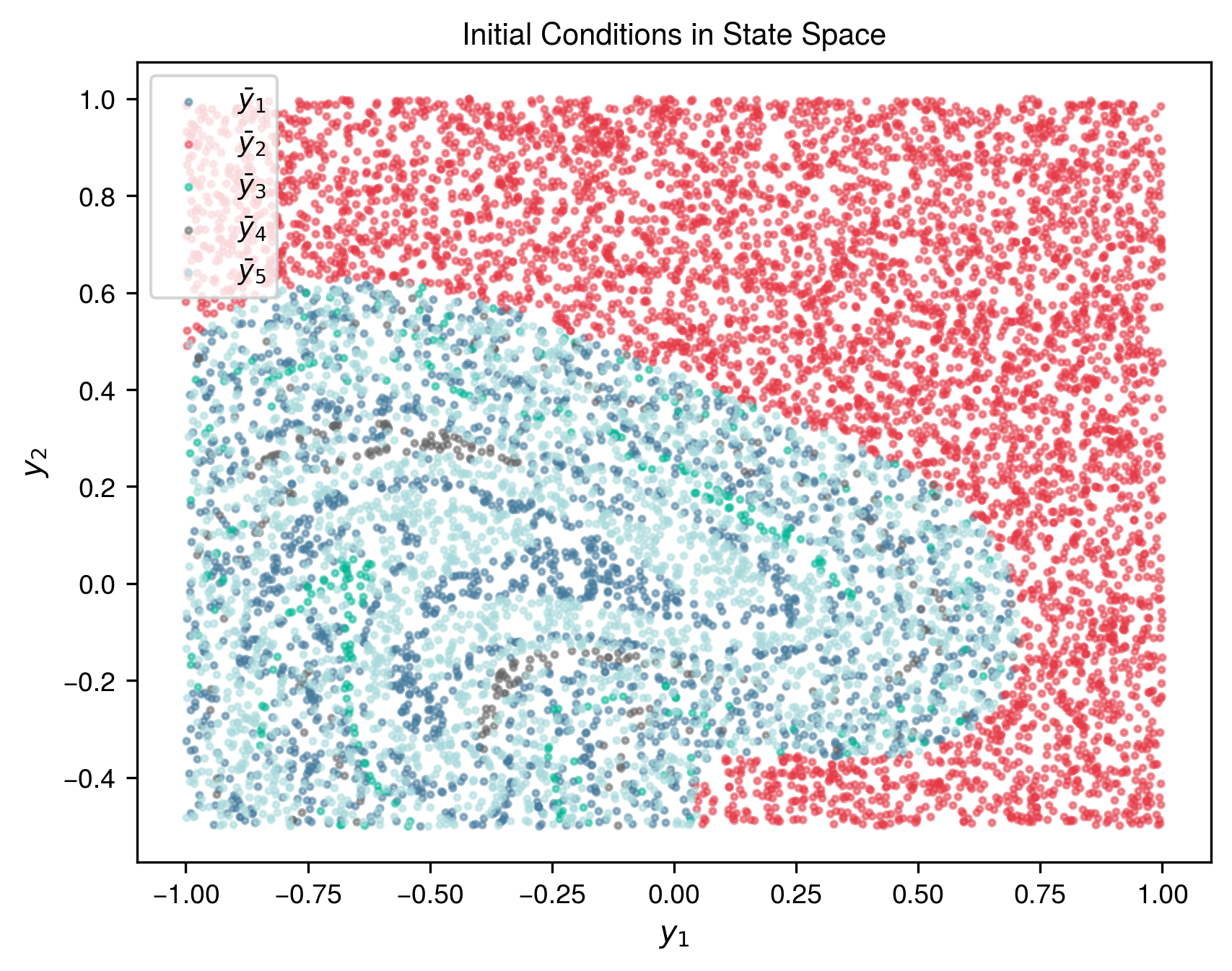

State Space

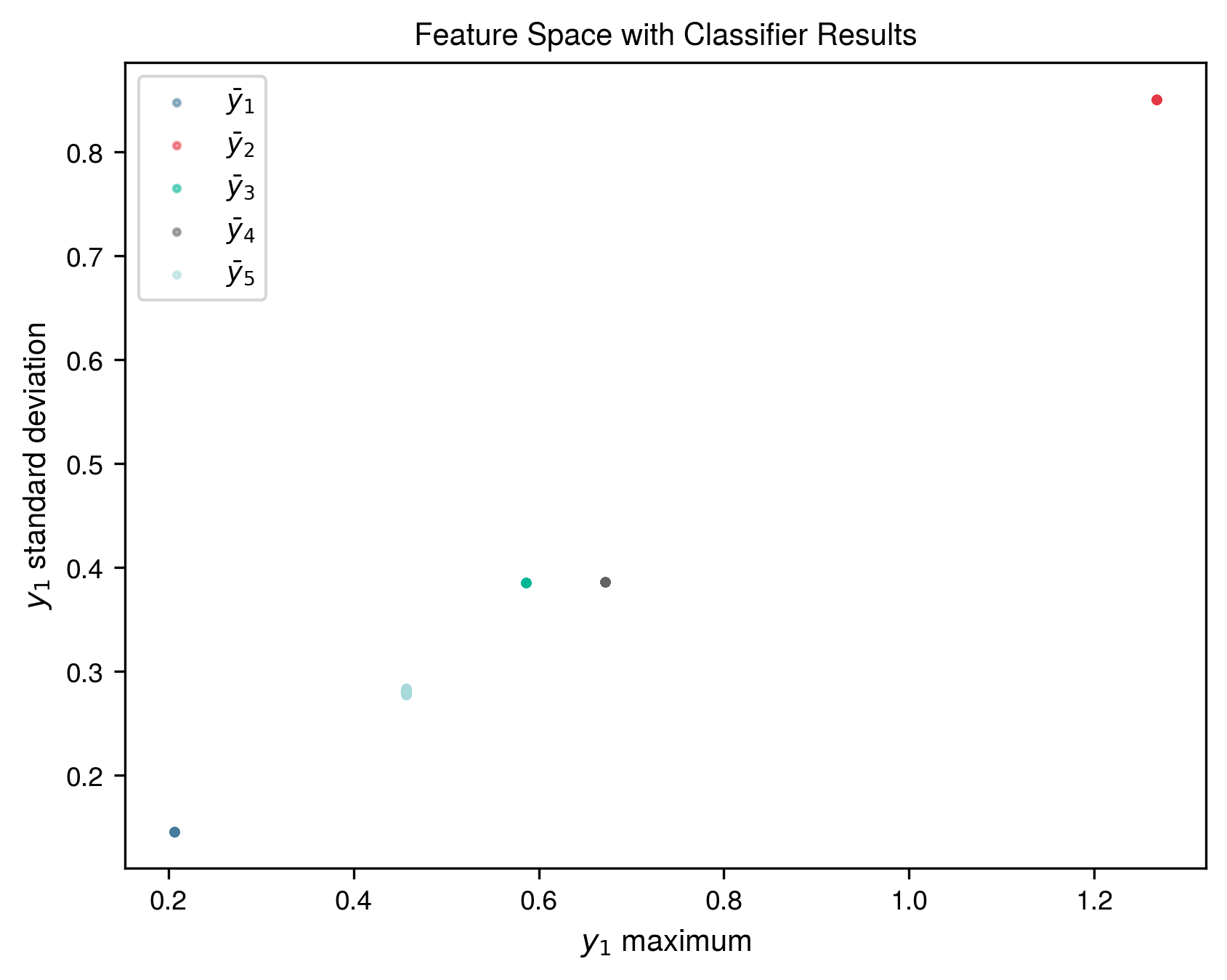

Feature Space
